DiffusionLimitedAggregation Node
DiffusionLimitedAggregation creates branching, fractal-like structures that resemble the rugged, irregular contours of mountain ranges.
Category
WIP
Outputs
| Name | Type | Description |
|---|---|---|
| output | VirtualArray | DiffusionLimitedAggregation heightmap. |

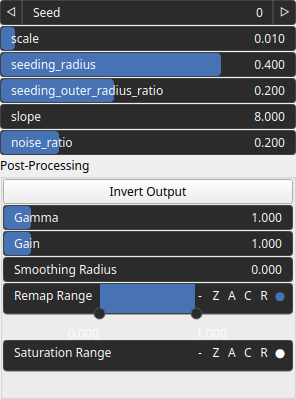

Parameters
| Name | Type | Description |
|---|---|---|
| noise_ratio | Float | A parameter that controls the amount of randomness or noise introduced in the talus formation process. |
| Gain | Float | Mid-centered gain transformation applied to the elevation values. This is a non-linear recurve operator centered around the mid elevation (typically 0.5). Increasing the gain pushes values toward the minimum and maximum elevations, creating flatter low/high regions with a steeper transition around the midpoint. |
| Gamma | Float | Standard gamma correction applied to the elevation values. This is a monotonic power-law remapping that shifts emphasis toward low or high elevations, making the overall shape sharper or bulkier without changing its ordering. |
| Invert Output | Bool | Inverts the output values after processing, flipping low and high values across the midrange. |
| Remap Range | Value range | Linearly remaps the output values to a specified target range (default is [0, 1]). |
| Saturation Range | Value range | Modifies the amplitude of elevations by first clamping them to a given interval and then scaling them so that the restricted interval matches the original input range. This enhances contrast in elevation variations while maintaining overall structure. |
| Smoothing Radius | Float | Defines the radius for post-processing smoothing, determining the size of the neighborhood used to average local values and reduce high-frequency detail. A radius of 0 disables smoothing. |
| scale | Float | A scaling factor that influences the density of the particles in the DLA pattern. |
| Seed | Random seed number | Random seed number. The random seed is an offset to the randomized process. A different seed will produce a new result. |
| seeding_outer_radius_ratio | Float | The ratio between the outer seeding radius and the initial seeding radius. It determines the outer boundary for particle seeding. |
| seeding_radius | Float | The radius within which initial seeding of particles occurs. This radius defines the area where the first particles are placed. |
| slope | Float | Slope of the talus added to the DLA pattern. |
Example
No example yet
No example available for this node.
