Slope Node

Slope is function used to represent continuous terrain slope.

Inputs

Name	Type	Description
control	VirtualArray	Control parameter, acts as a multiplier for the weight parameter.
dx	VirtualArray	Displacement with respect to the domain size (x-direction).
dy	VirtualArray	Displacement with respect to the domain size (y-direction).

Name	Type	Description
output	VirtualArray	Slope heightmap.

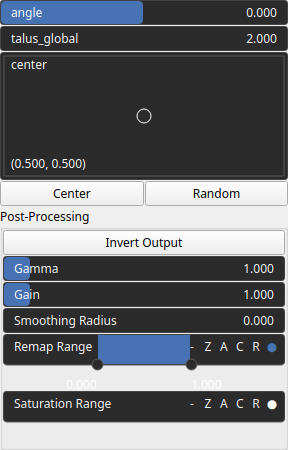

Name	Type	Description
angle	Float	Angle.
center	Vec2Float	Reference center within the heightmap.
Gain	Float	Mid-centered gain transformation applied to the elevation values. This is a non-linear recurve operator centered around the mid elevation (typically 0.5). Increasing the gain pushes values toward the minimum and maximum elevations, creating flatter low/high regions with a steeper transition around the midpoint.
Gamma	Float	Standard gamma correction applied to the elevation values. This is a monotonic power-law remapping that shifts emphasis toward low or high elevations, making the overall shape sharper or bulkier without changing its ordering.
Invert Output	Bool	Inverts the output values after processing, flipping low and high values across the midrange.
Remap Range	Value range	Linearly remaps the output values to a specified target range (default is [0, 1]).
Saturation Range	Value range	Modifies the amplitude of elevations by first clamping them to a given interval and then scaling them so that the restricted interval matches the original input range. This enhances contrast in elevation variations while maintaining overall structure.
Smoothing Radius	Float	Defines the radius for post-processing smoothing, determining the size of the neighborhood used to average local values and reduce high-frequency detail. A radius of 0 disables smoothing.
talus_global	Float	Slope slope...

No example yet

No example available for this node.
