Unsphericity Node
Unsphericity is a measure used to quantify the deviation of the heightmap shape from a perfect sphere. In other words, it indicates how much the terrain differs from being perfectly round or spherical.
Category
WIP/DEPRECATED
Inputs
| Name | Type | Description |
|---|---|---|
| input | VirtualArray | Input heightmap. |
Outputs
| Name | Type | Description |
|---|---|---|
| output | VirtualArray | Shape index. |

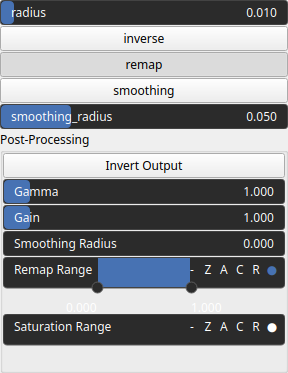

Parameters
| Name | Type | Description |
|---|---|---|
| inverse | Bool | Toggle inversion of the output values. |
| Gain | Float | Mid-centered gain transformation applied to the elevation values. This is a non-linear recurve operator centered around the mid elevation (typically 0.5). Increasing the gain pushes values toward the minimum and maximum elevations, creating flatter low/high regions with a steeper transition around the midpoint. |
| Gamma | Float | Standard gamma correction applied to the elevation values. This is a monotonic power-law remapping that shifts emphasis toward low or high elevations, making the overall shape sharper or bulkier without changing its ordering. |
| Invert Output | Bool | Inverts the output values after processing, flipping low and high values across the midrange. |
| Remap Range | Value range | Linearly remaps the output values to a specified target range (default is [0, 1]). |
| Saturation Range | Value range | Modifies the amplitude of elevations by first clamping them to a given interval and then scaling them so that the restricted interval matches the original input range. This enhances contrast in elevation variations while maintaining overall structure. |
| Smoothing Radius | Float | Defines the radius for post-processing smoothing, determining the size of the neighborhood used to average local values and reduce high-frequency detail. A radius of 0 disables smoothing. |
| radius | Float | Filter radius with respect to the domain size. |
| remap | Bool | Remap the operator's output to a specified range, defaulting to [0, 1]. |
| smoothing | Bool | Enable or disable smoothing to reduce noise in the curvature computation. |
| smoothing_radius | Float | Specifies the radius for smoothing, determining how much the curvature is averaged over neighboring pixels. |
Example
No example yet
No example available for this node.
